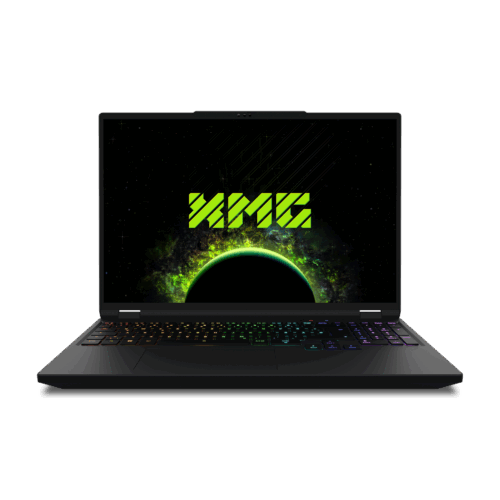

XMG APEX 16 MAX (M25) (ID: XAP16XM25)

Changelog

• 2025-09-12: Initial release
• 2025-12-17: Added BIOS N.1.17A17 / EC 1.31.10 for AMD Ryzen 9000 series
  • Improved power managment and temperature protection
• 2026-01-28: Updated Control Center 5.57.51.60
  • Fixed an issue where the display brightness would reset after each reboot
  • Fixed an issue where the local dimming setting would not be reapplied correctly after reboot
  • Fixed an issue where custom fan curve would not be applied correctly while XMG OASIS is connected
• 2026-04-28: Added BIOS N.1.36A30 / EC 1.42.10
  • Updated AGESA BIOS to 1.0.0.0e
  • Updated PD firmware
  • Updated TPM firmware
  • Fixed platform security issues AMD-SB-4011 and AMD-SB-7055
  • Fixed an issue with HDR display mode
  • Fixed an issue with charging over USB-C
  • Fixed various minor system issues
  • Improved DDR5 memory compatibility2026-04-28: Added BIOS N.1.36A30 / EC 1.42.10 for AMD Ryzen 9000 series
  • Removed RAID functionality
• 2026-04-30: Updated AMD GPU OEM driver to version 32.0.21032.8002
• 2026-05-06: Added BIOS N.1.40A31 / EC 1.50.10 for AMD Ryzen 9000 series
  • Improved power management.
  • Fixed the issue of AMD FreeSync not working anymore.
  • IMPORTANT NOTICE on BitLocker:
    • Before executing the update, please back up your BitLocker/device-encryption recovery key.
    • Failure to do so may cause you to become unable to log in to the operating system after BIOS update.
    • BitLocker might be active even if you never enabled it yourself. Please use our tool to check the status.
    • More information: https://go.xmg.gg/bitlocker
    • Our tool to suspend or disable BitLocker: https://go.xmg.gg/bitlocker-tool
  • General notes:
    • Don't remove the flash drive during the flash process until the laptop shuts down completely.
    • The flashing process will take some time and the device can restart several times during the flashing process.
    • During the flashing process, the Power LED might flicker for a period of time.
    • Due to the AGESA update since BIOS N.1.36A30, BIOS downgrades to BIOS N.1.17A17 or earlier are NOT POSSIBLE anymore after installing this or any later update.
    • RAID is no longer functional in this BIOS branch (see also: What is RAID and is there still any use for it?).
  • See also:
    • Announcement thread (Reddit)
• 2026-05-21: Updated AMD GPU driver to version 32.0.21043.10005

Supported Operating Systems

• Windows 11 24H2
• Windows 11 25H2
  • requires BIOS N.1.36A30 / EC_1.42.10 or later
  • If you experience issues after upgrading from 24H2 to 25H2, we recommend performing a clean reinstallation of Windows 11 25H2 and downloading all drivers from this download page.
    • For more information, please follow this XMG news page.

BIOS Compatibility Notice

XMG APEX 16 MAX (M25) is available with two different CPU platforms.
These two CPU platforms share the same drivers, but use different BIOS firmware.
Both of them are listed here on this page.
Each BIOS update package (ZIP file) includes the CPU series name in its filename.

Please double-check which CPU is in your system before you attempt to update your BIOS.
One way to check the CPU: press Win+R, type "msinfo32" and confirm, or search for "System Information" in Windows Start Menu.

Note: there are yet no BIOS updates available, that's why this page currently lists nothing under firmware.

Notice on latest NVIDIA Graphics Drivers

Please find the latest NVIDIA graphics drivers here:

• https://www.nvidia.com/en-us/geforce/drivers/

Notice on AMD Graphics Drivers

Please initially install the "AMD_VGA" driver from this Download Pages (also known as "AMD Software: Adrenalin Edition"), prior to updating with the latest version from AMD's website. Our OEM driver incorporates model-specific customizations that will carry over to subsequent installations of the latest official AMD driver.

If you've already installed the latest AMD driver on a freshly reinstalled Windows without first using our "AMD_VGA" driver from this Download Pages, we advise you to download and install our AMD_VGA" driver now. Make sure to select the "Clean install" option during installation. You can then proceed to update with the latest AMD driver once more.

This approach ensures that OEM-specific adjustments are integrated into the official driver as outlined in the "Extension INF" (EINF) specification. Failure to follow this method may lead to unforseen performance, compatibility or stability issues. See also our related announcement forum threads (English, German).

If you have technical issues with the latest AMD graphics driver, please consider to use the latest AMD OEM graphics driver (download here).

Frequently Asked Questions

• I just unboxed my XMG laptop. What should I do next?
• Do I need *all* drivers or is it enough to just install the most essential ones?
• How can I update the EC/BIOS firmware of my laptop?
